Stainless steel Mini Fork to Swage Rigging Screw

Mini Fork to Swage Turnbuckles in various sizes
Dimensions: Ranging from M6 to M8
Material: A4 Stainless

Click the option box to choose size

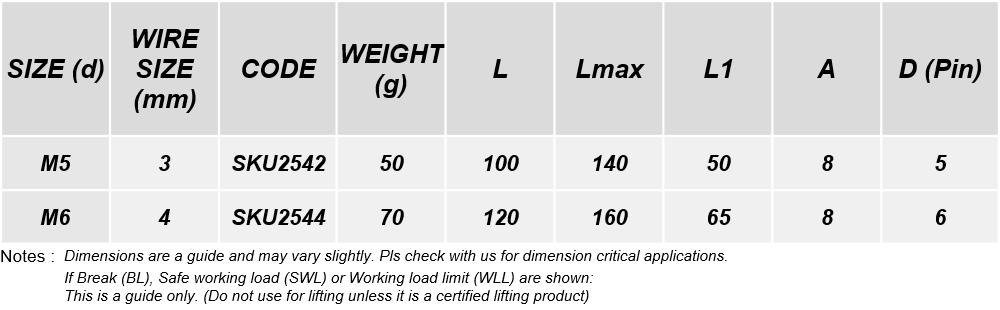

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

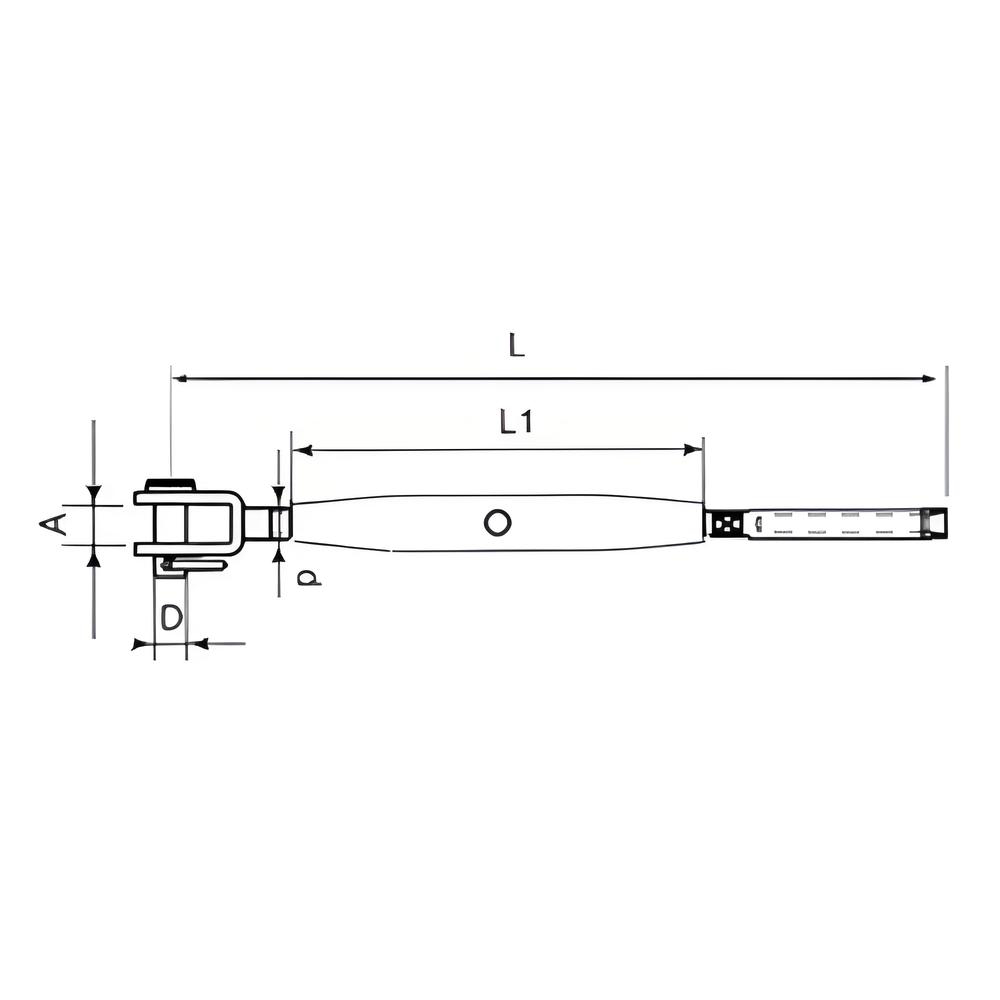

Click below for an engineering drawing

Product Information :

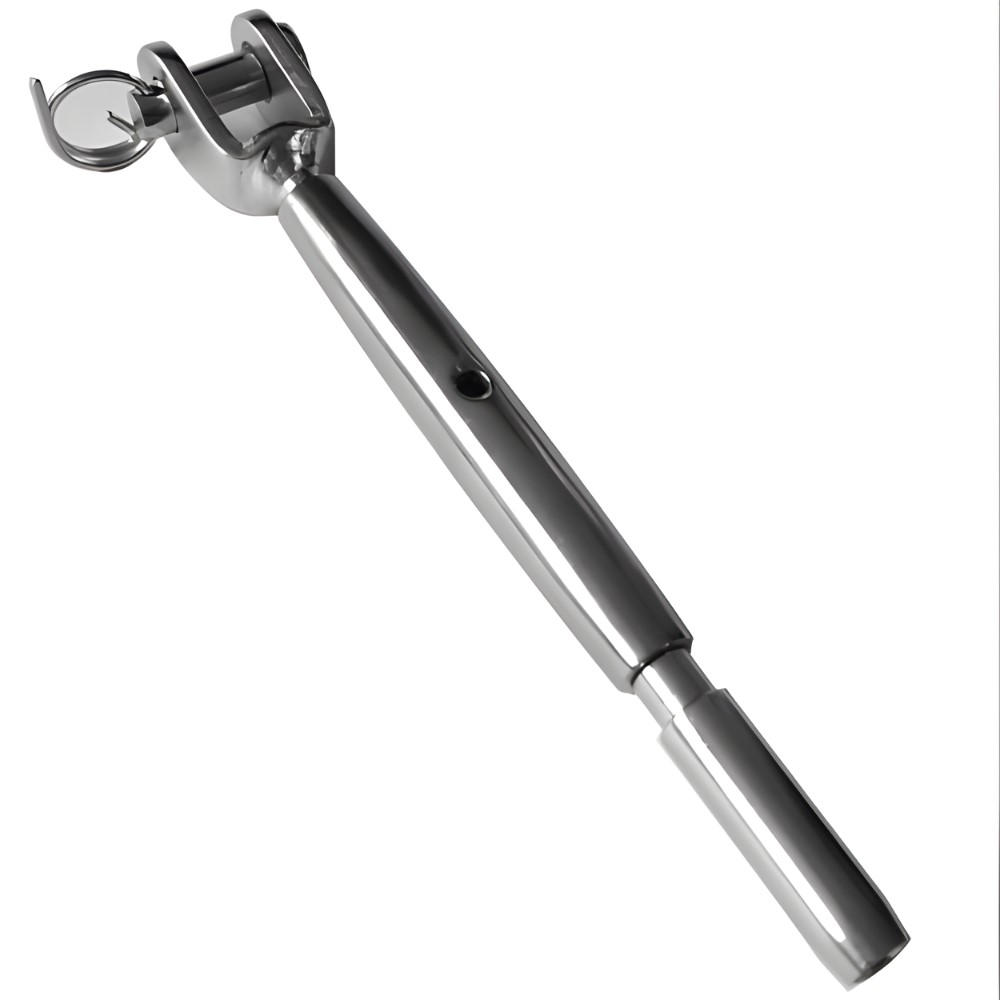

Stainless Steel Mini Fork to Swage Rigging Screw

The function of a Rigging Screw or Turnbuckle is as a tensioner or adjuster in wire rope assemblies.
The mini version is used in installations for its aesthetic qualities and where only a small range of adjustment is required. You tighten the wire by rotating the barrel of the Rigging Screw. This is useful both at installation and in routine maintenance. Available in sizes M5 to M10. Machined Rigging Screws, advised for use in standing rigging available on request.
Please contact us for a quotation.
Other names for this product: Bottle Screw, Turnbuckle
