Stainless steel Fork to Swage Rigging Screw

Fork to Swage Turnbuckles in various sizes
Dimensions: Ranging from M5 to M20
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

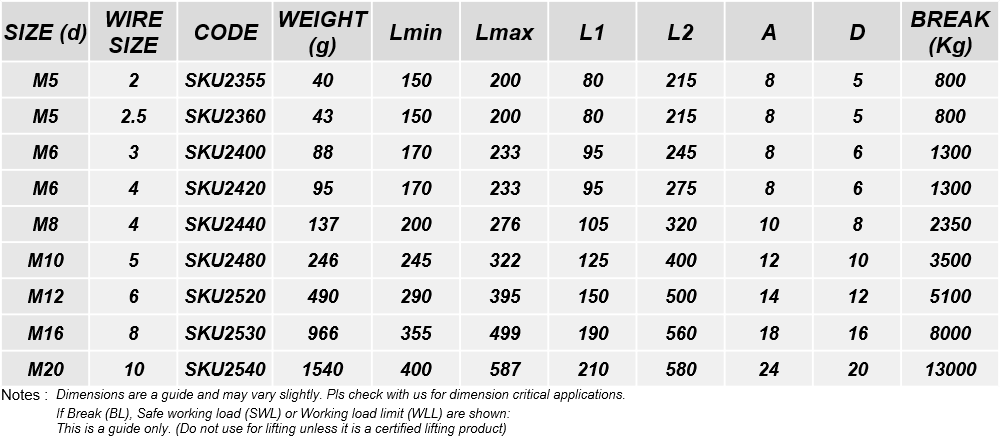

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.

Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

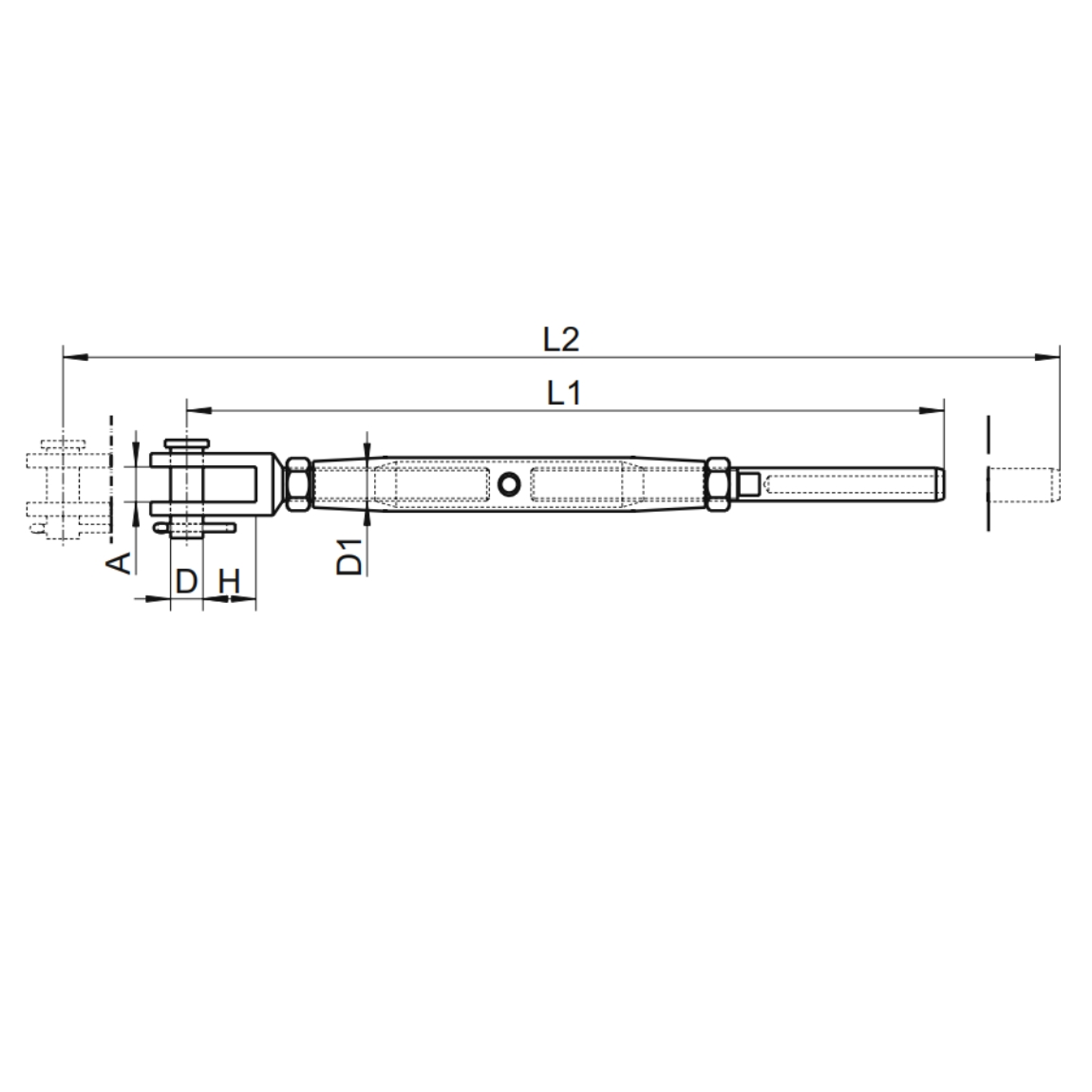

Click below for an engineering drawing :

Product Information :

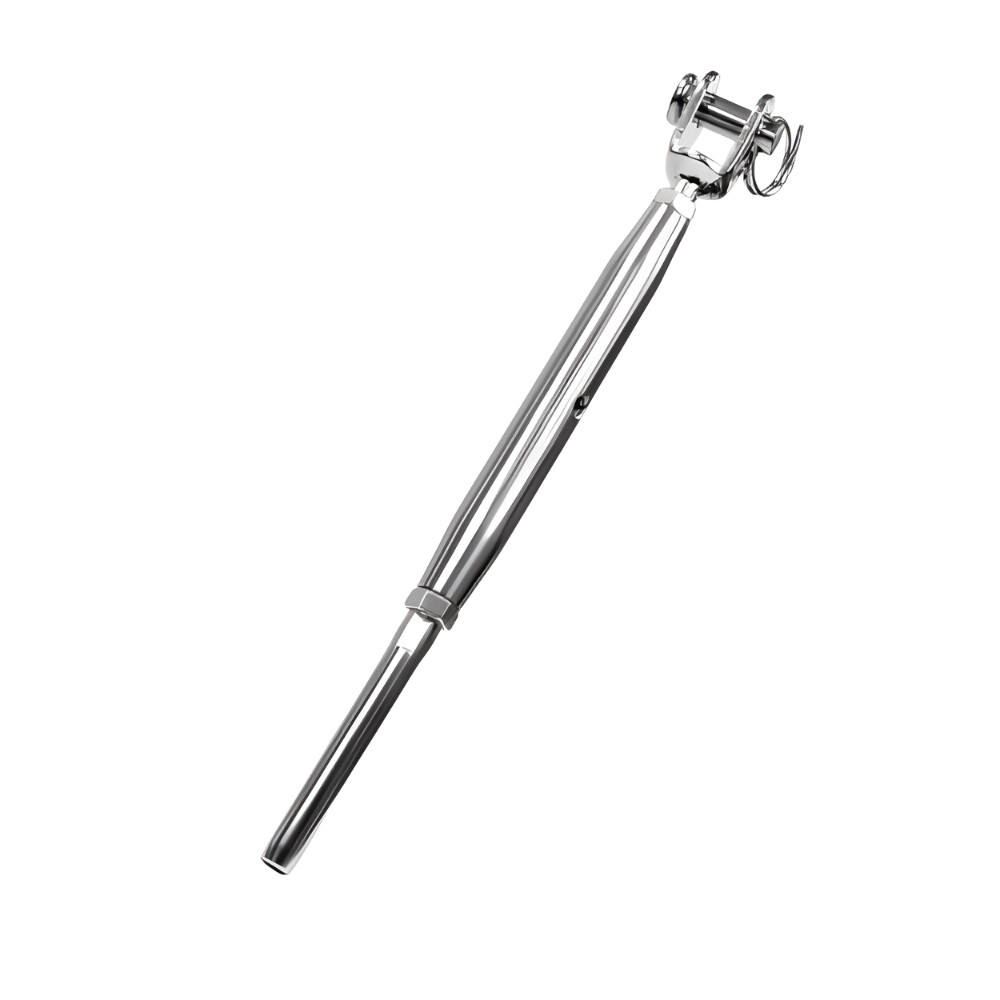

Stainless Steel Fork to Swage Rigging Screw

The function of a Rigging Screw or Turnbuckle is as a tensioner or adjuster in wire rope assemblies.
This could take the form of balustrading, running rigging or catenery wires. You tighten the wire by rotating the barrel of the Rigging Screw. This is useful both at installation and in routine maintenance. Available in sizes M5 to M20
Machined Rigging Screws, advised for use in standing rigging available on request.
Please contact us for a quotation.
Other names for this product: Bottle Screw, Turnbuckle, Jaw Swage Rigging Screw
