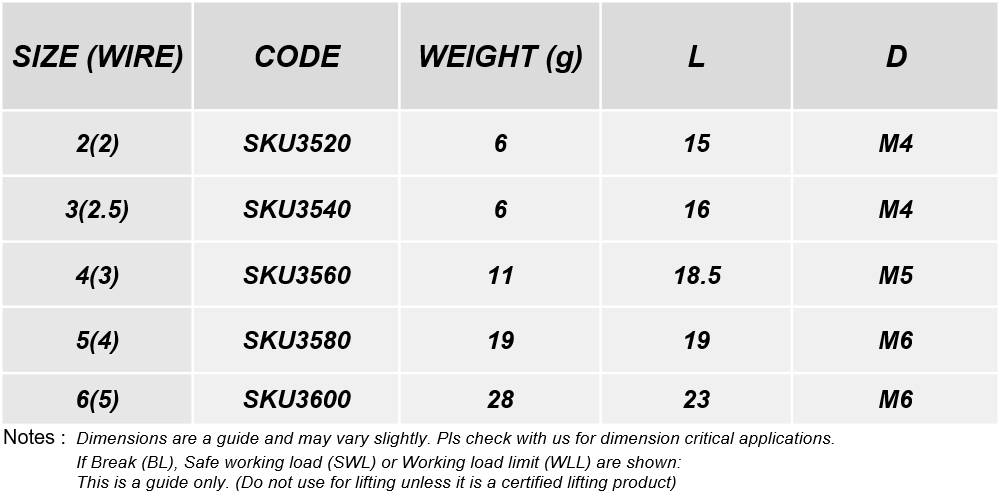

Chart showing dimensions for all sizes in mm :
Please note : the above is a guide and Dimensions can vary slightly due to tolerances. Where WLL or Break load are shown : SWL or WLL = Safe working load limit (kg) :
For "dimension sensitive" applications pls ask for measurement.
This is the recommended maximum weight the product should carry and will vary from batch to batch. Break Load :
This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)
Click below for an engineering drawing :
Product Information :
Stainless Steel Simplex Wire Rope Clip
Wire Rope Clips are used, with or without thimbles, to create an eye in the end of a length of wire rope.
Should only be used with 7x7 wire up to 4mm and 7x19 wire. Do not use with 1x19 wire.
Do not use in lifting applications. Easy installation. Available in sizes to suit 2-5mm wire rope. Made from 316 Stainless Steel. This product is not suited for use with Galvanised wire.
Other names for this product: Wire Rope Clamps, Cable Clips, Cable Grips, Bulldog Grips, Wire Rope Clips
