Stainless steel Thimbles

Thimbles for various size wire
Dimensions: Ranging from 2 to 20mm wire
Material: A4 Stainless

Items marked with *** are Special order.

Click the option box to choose size

P820

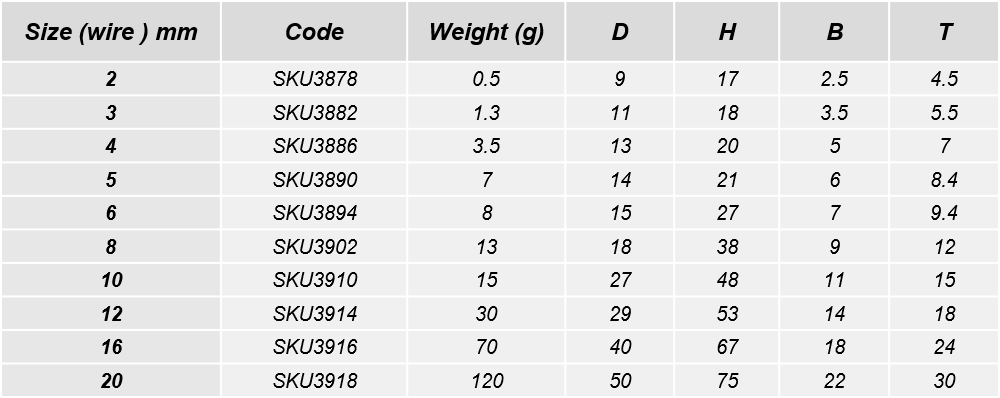

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where WLL or Break load are shown :
SWL or WLL = Safe working load limit (kg) : This is the recommended maximum weight the product should carry and will vary from batch to batch.
Break Load : This is the recommended maximum weight to break for the product and will vary from batch to batch. You should only use the product at the WLL - which is 1/4 the break load.
(Note : This is for guidance only and is not an endorsement. Do not use any product for lifting unless drawing is marked suitable for lifting with the L symbol. For load bearing or lifting applications on products not designed for lifting, you should have the part or assembly tested and certified. Contact us if you require this)

Click below for an engineering drawing :

Product Information :

Stainless Steel Thimbles

Thimbles are a teardrop shaped eyelet with a concave outer surface. They provide chafing protection and added strength to a loop
added to the end of a length of wire rope. You run the wire around the outside of the thimble and secure with a clip, grip or ferrule close to the narrow end of the thimble for a good fit. Not suitable for use with Galvanised wire. Available in sizes 2-22mm. Made from 316 Stainless Steel. Other styles of thimble available on request - nylon, closed, etc.
Other names for this product: Wire Eye

MATERIAL
MATERIAL: A4 STAINLESS
