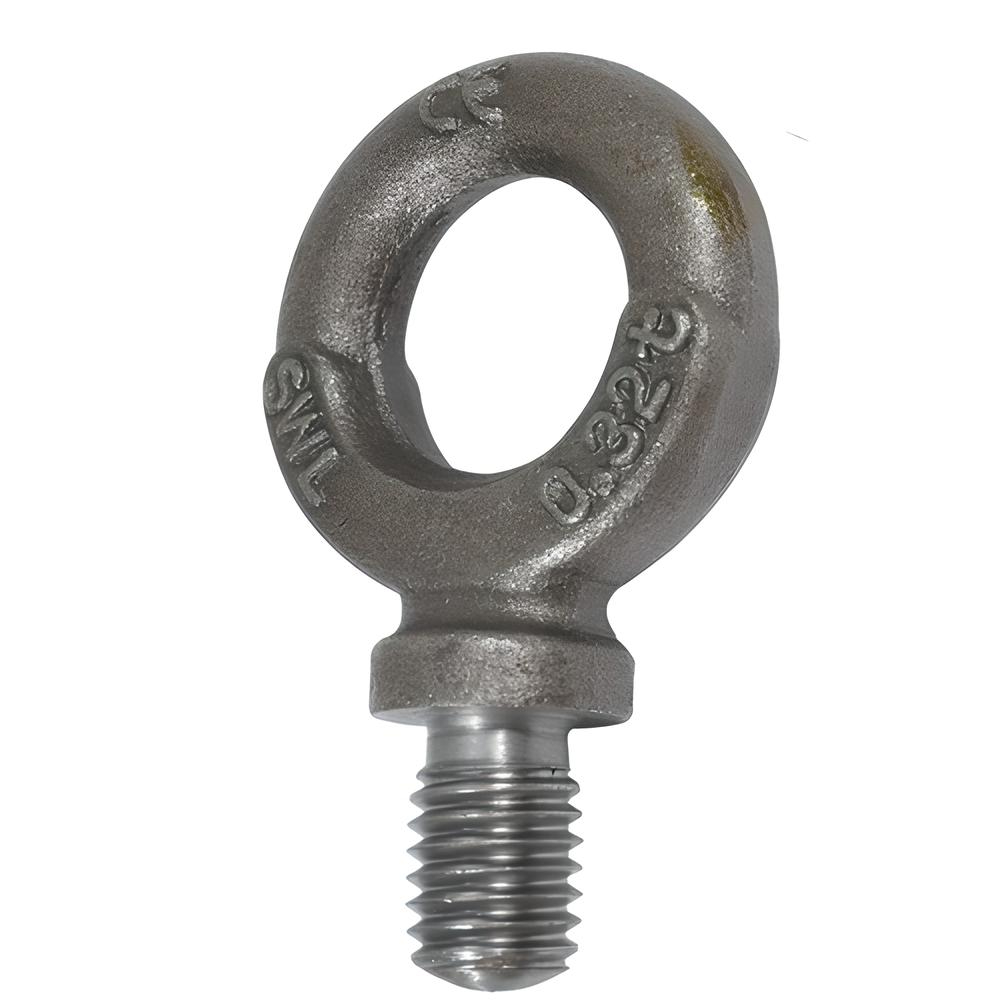

Dynamo eyebolts to B.S.4278 Table 3

Dynamo eyebolts to B.S.4278 Table 3- sizes ranging from M6 to M24
Dimensions: Ranging in size from M6 to M24
Material: Self Colour steel

Items marked with *** are Special order.

Click the option box to choose size

P3020

Chart showing dimensions for all sizes in mm :

Please note : the above is a guide and Dimensions can vary slightly due to tolerances.
For "dimension sensitive" applications pls ask for measurement.


Where Loadings are given : Break load - BL, Working load - WLL, Safe load - SWL. Please refer to the Engineering drawing for more information.

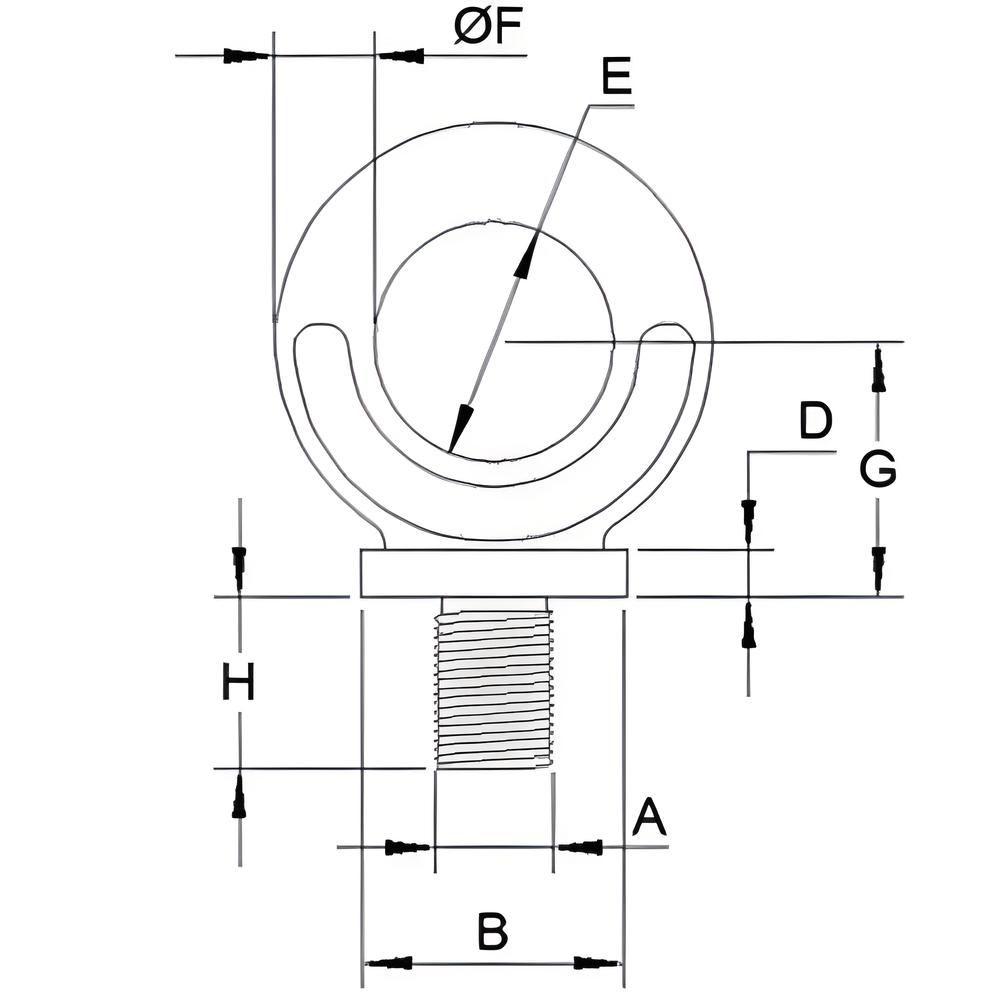

Click below for an engineering drawing :

Product Information :

Dynamo eyebolts to B.S.4278 Table 3

These eyebolts can be used for lifting and are more suitable for vertical lift loads.
Other names for this product: Eye Bolt, Lifting Eye, Threaded Eye, Male Eye

MATERIAL
MATERIAL: OTHER
