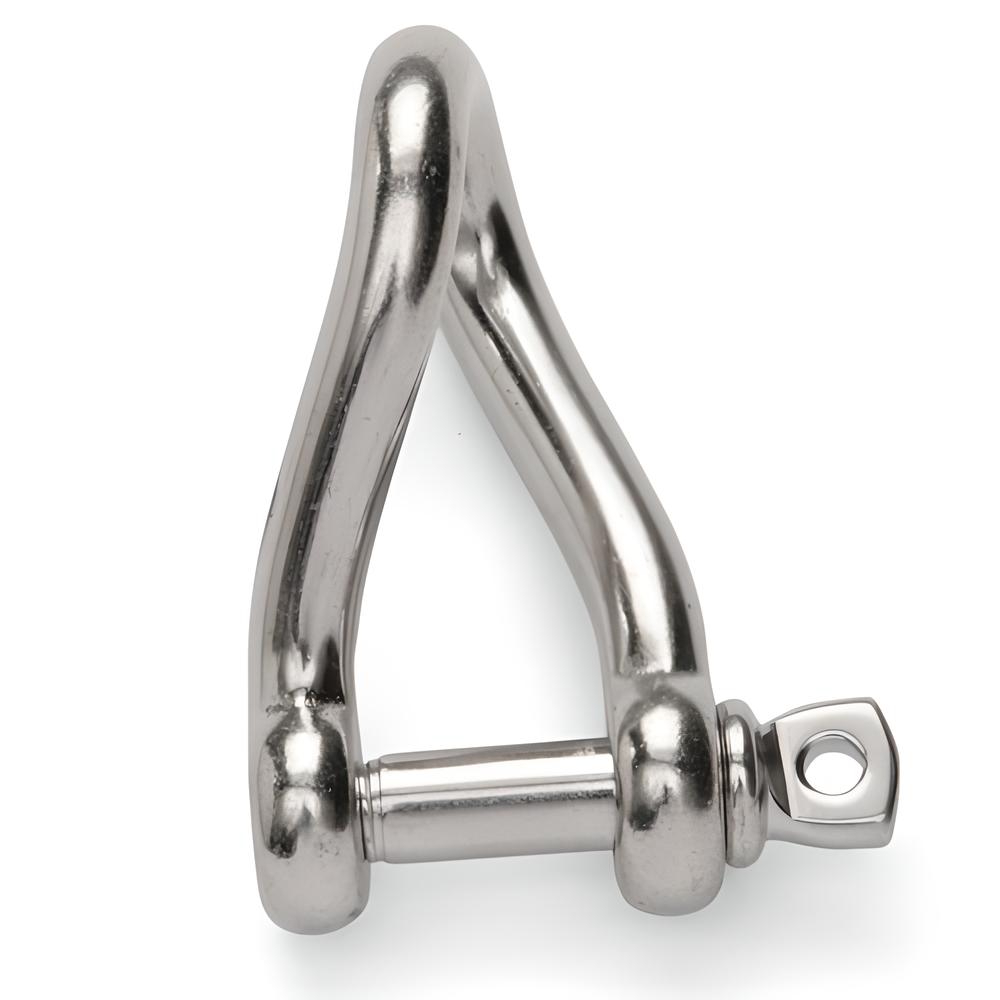

Twisted Shackle - Forged - 316 Stainless steel
Twisted Shackle - Forged - 316 Stainless steel Twisted Shackle - Forged - 316 Stainless steel
Twisted Shackle - Forged - 316 Stainless steel
Twisted shackles are used where an offset to the direction of the pin is create. To put it another way, they can connect two objects where one object is at 90 degrees. For example, a fixed pulley. They are manufactured in marine grade stainless giving superior corrosion resistance. Available in size 4mm, 5mm, 6mm, 8mm, 10mm, 12mm. Where the size is the diameter of the pin and diameter of the cross section of the body.
Price per : Pack of 1
Further stock is available subject to a small lead time. Contact us for a quote.

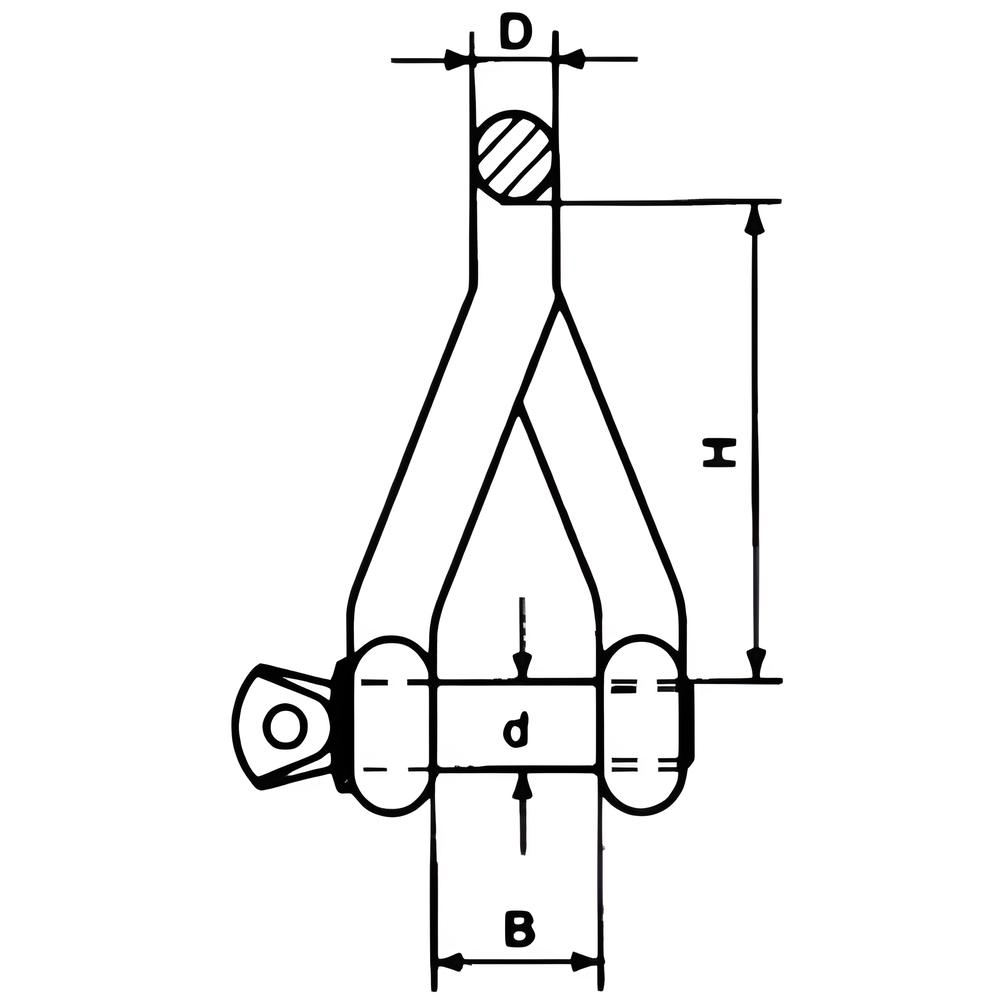

Option MATERIAL Size Code Weight (g) D/d B H WLL (guide) Price Qty
4mm Twisted shackle SKU1480 A4 STAINLESS 4 SKU1480 10 4 8 23 150 £0.95 INC. VAT £1.14
Qty Price
50+ £0.90 INC. VAT £1.08
100+ £0.85 INC. VAT £1.02
1 In stock
5mm Twisted shackle SKU1520 A4 STAINLESS 5 SKU1520 21 5 10 28 240 £0.93 INC. VAT £1.11
Qty Price
50+ £0.88 INC. VAT £1.06
100+ £0.84 INC. VAT £1.00
78 In stock
6mm Twisted shackle SKU1560 A4 STAINLESS 6 SKU1560 32 6 12 37 340 £1.47 INC. VAT £1.77
Qty Price
20+ £1.40 INC. VAT £1.68
50+ £1.33 INC. VAT £1.59
186 In stock
8mm Twisted shackle SKU1600 A4 STAINLESS 8 SKU1600 74 8 16 42 600 £1.98 INC. VAT £2.38
Qty Price
20+ £1.88 INC. VAT £2.26
50+ £1.78 INC. VAT £2.14
36 In stock
10mm Twisted shackle SKU1640 A4 STAINLESS 10 SKU1640 144 10 20 55 750 £3.28 INC. VAT £3.94
Qty Price
20+ £3.12 INC. VAT £3.74
50+ £2.95 INC. VAT £3.55
87 In stock
12mm Twisted shackle SKU1680 A4 STAINLESS 12 SKU1680 252 12 25 68 1150 £4.43 INC. VAT £5.31
Qty Price
20+ £4.21 INC. VAT £5.05
50+ £3.99 INC. VAT £4.78
54 In stock

This 8mm A4 stainless steel twisted shackle is engineered for medium to heavy rigging, marine hardware, and outdoor structural applications where a 90 degree load alignment is required. The twisted body rotates the connection point, allowing rope, chain, or hardware to sit naturally without twisting or binding.

The A4 (316) stainless steel construction ensures exceptional resistance to rust, pitting, and saltwater corrosion, making it suitable for yachts, commercial marine use, and architectural installations. The twisted design improves articulation and reduces wear in multi directional systems.

Compared with standard dee shackles, the twisted profile prevents torsion and misalignment, making it ideal for pulleys, sheaves, and angled hardware connections.

Typical Uses

  • Marine rigging and deck hardware
  • Architectural tension systems and balustrades
  • Pulleys and multi directional rigging
  • Outdoor structural fixings

Key Benefits

  • Twisted design rotates the load path by 90 degrees
  • A4 stainless steel ensures extreme corrosion resistance
  • Ideal for angled or misaligned connection points
  • Improves articulation and reduces rope wear

Specifications

  • Size: 8mm
  • Material: A4 Stainless Steel (316 Marine Grade)
  • SKU: 1600
MATERIAL
MATERIAL A4 STAINLESS

Click the image to Download Datasheets
