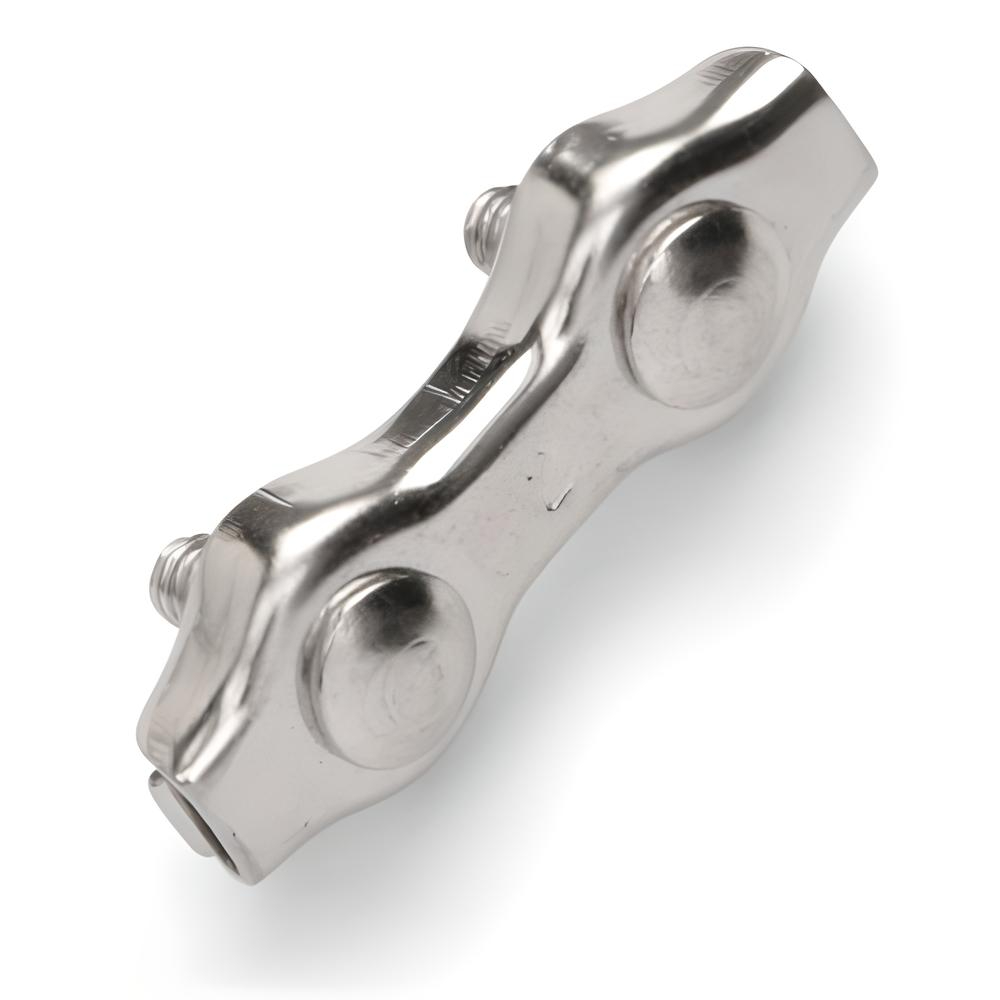

Duplex Wire Rope Clip - 316 Stainless steel
Duplex Wire Rope Clip - 316 Stainless steel Duplex Wire Rope Clip - 316 Stainless steel
Duplex Wire Rope Clip - 316 Stainless steel
Duplex Wire Rope Clip are used where the aesthetics of this type of clip (simplex and duplex) is required, but a slightly stronger clamping force is available. Unscrew the 2 hex nuts to open up the plate, place the wire in, clamp by tightening the hex nuts. Please click on the product size you require and read the product information tab, as the larger sizes of wire rope - 5mm and 6mm are more difficult to assemble, further information about this is shown on the product information tab, when you click the product option field.
Price per : Pack of 1
Further stock is available subject to a small lead time. Contact us for a quote.

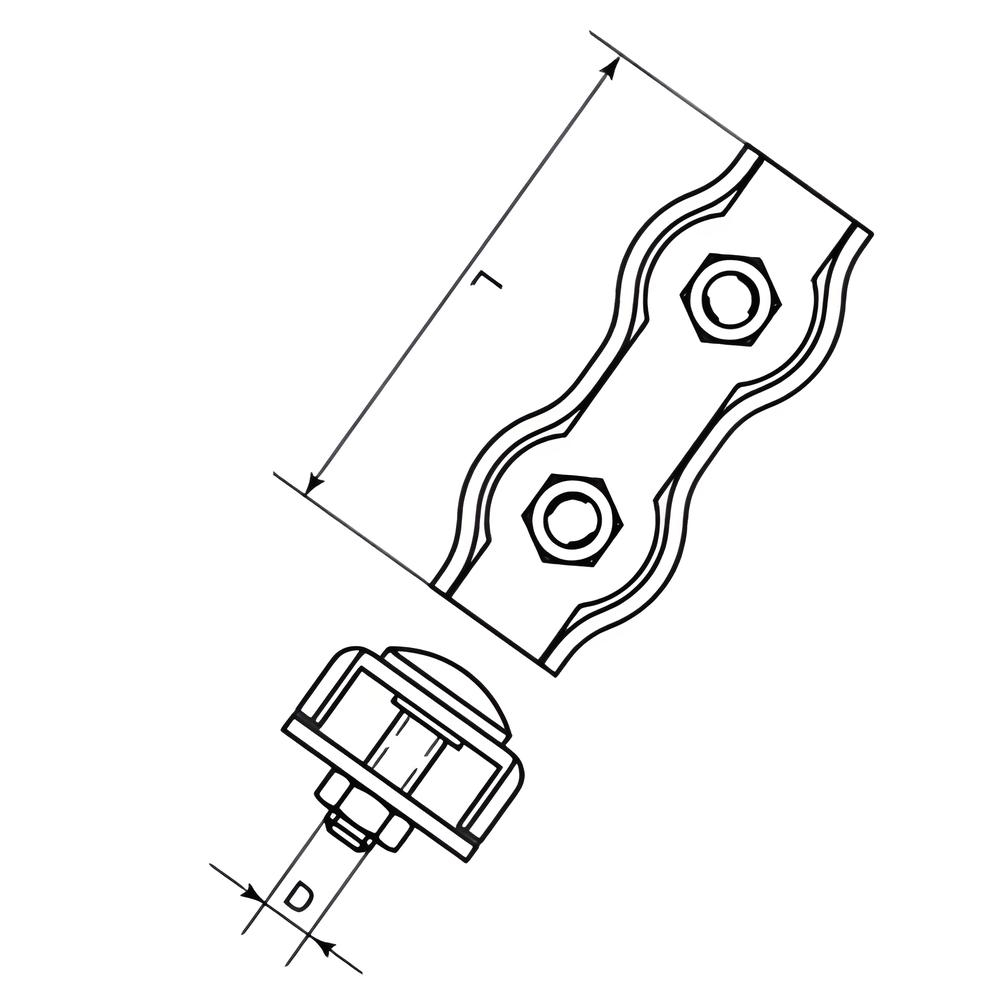

Option MATERIAL Size (wire) Code Weight (g) L D Price Qty
2mm Duplex Wire Rope Clip SKU3640 A4 STAINLESS 2(2) SKU3640 10 37 M4 £0.45 INC. VAT £0.54
Qty Price
50+ £0.43 INC. VAT £0.51
100+ £0.40 INC. VAT £0.49
65 In stock
3mm Duplex Wire Rope Clip SKU3660 A4 STAINLESS 3(2.5) SKU3660 13 40 M4 £0.65 INC. VAT £0.77
Qty Price
50+ £0.61 INC. VAT £0.74
100+ £0.58 INC. VAT £0.70
27 In stock
4mm Duplex Wire Rope Clip SKU3680 A4 STAINLESS 4(3) SKU3680 23 43 M5 £0.73 INC. VAT £0.88
Qty Price
50+ £0.69 INC. VAT £0.83
100+ £0.66 INC. VAT £0.79
92 In stock
5mm Duplex Wire Rope Clip SKU3700 A4 STAINLESS 5(4) SKU3700 38 53 M6 £0.95 INC. VAT £1.14
Qty Price
20+ £0.90 INC. VAT £1.08
50+ £0.86 INC. VAT £1.03
120 In stock
6mm Duplex Wire Rope Clip SKU3720 A4 STAINLESS 6(5) SKU3720 56 60 M6 £1.60 INC. VAT £1.92
Qty Price
20+ £1.52 INC. VAT £1.82
50+ £1.44 INC. VAT £1.73
189 In stock

This 5mm duplex wire rope clip provides a durable and corrosion-resistant method for securing wire rope ends in non-load-critical applications. The A4 stainless steel body offers excellent resistance to weathering, while the dual-bolt design ensures a firm and even grip on the rope.

Duplex clips should only be used with flexible wire rope constructions such as 7x7 and 7x19. They are not suitable for 1x19 wire rope or for lifting or load-bearing applications.

Typical Uses

  • General-purpose wire rope terminations
  • Architectural and garden tensioning systems
  • Outdoor and marine environments
  • Non‑critical support and guide wires

Key Benefits

  • Marine-grade A4 stainless steel
  • Even clamping pressure from twin bolts
  • Reliable for flexible wire rope types
  • Simple installation and adjustment

Specifications

  • Size: 5mm
  • Material: A4 Stainless Steel
  • Compatibility: 7x7 wire up to 4mm, 7x19 wire up to 6mm
  • Not suitable for: 1x19 wire rope or lifting applications
  • SKU: 3700
MATERIAL
MATERIAL A4 STAINLESS

Click the image to Download Datasheets
